RTSG: Ray Tracing for X3D via a Flexible Rendering Framework

Dmitri Rubinstein, Iliyan Georgiev, Benjamin Schug, Philipp Slusallek
International Conference on 3D Web Technology (Web3D) 2009

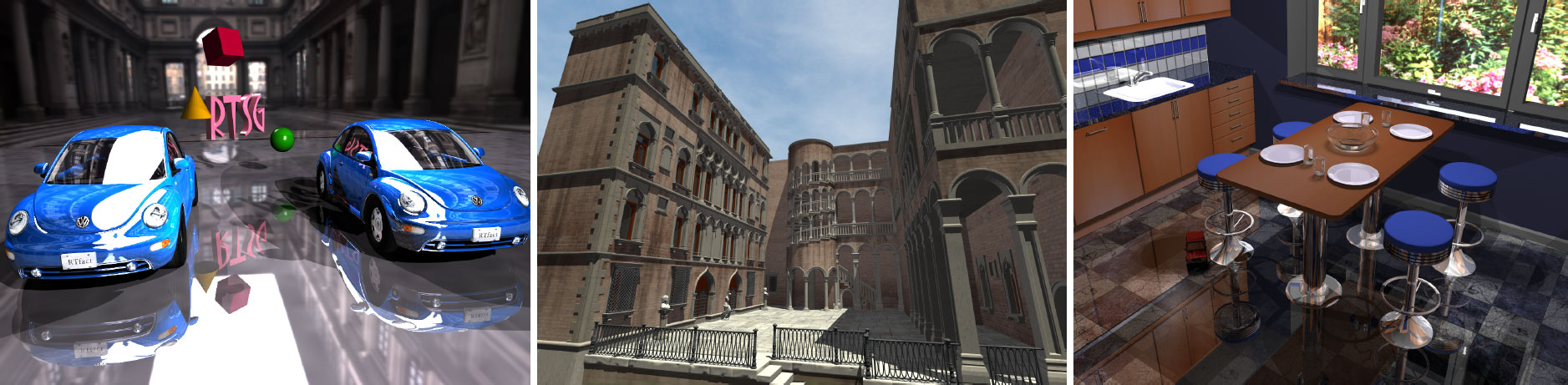

Scenes rendered interactively with RTSG using ray tracing with shadows, reflection, and refraction. Left: Beetles (2.4M triangles, 4.1 FPS). Middle: Venice (1.2M triangles, 5.6 FPS). Right: BART Kitchen (108K, 1.9 FPS).


VRML and X3D are the most widely adopted standards for interactive 3D content interchange. However, they are both designed around the common restricted functionality available in hardware graphics processors. Thus, most existing scene graph implementations are tightly integrated with rasterization APIs, which have difficulties simulating advanced global lighting effects.

Conversely, complex photo-realistic effects are naturally supported by ray tracing based rendering algorithms [Glassner 1989]. Due to recent research advances and the constantly increasing computing power of commodity PCs, ray tracing is emerging as an interesting alternative for interactive applications.

In this paper we present RTSG (Real-Time Scene Graph), a flexible scene management and rendering system. RTSG is X3D-compliant and has been designed to efficiently support both ray tracing and rasterization using a backend-independent rendering infrastructure. We describe two ray tracing and one rasterization backends and demonstrate that they achieve real-time rendering performance.

Downloads and links

BibTeX reference

  author = {Dmitri Rubinstein and Iliyan Georgiev and Benjamin Schug and Philipp Slusallek},
  title  = {{RTSG}: Ray Tracing for {X3D} via a Flexible Rendering Framework},
  booktitle = {Proceedings of the 14th International Conference on Web3D Technology 2009 (Web3D Symposium '09)},
  year = {2009},
  pages = {43--50},
  location = {Darmstadt, Germany},
  publisher = {ACM},
  address = {New York, NY, USA}
